3D Wire Mesh vs. Anti-Climb 358 Security Fencing

When securing high-value perimeters, commercial facilities, residential estates, or critical infrastructure, traditional chain link wire or masonry walls often fall short on aesthetics, visibility, or intrusion resistance. Modern perimeter design favors welded wire mesh systems, primarily 3D Wire Mesh Fencing (Nylofor/V-Fold) and Anti-Climb 358 Security Mesh (ClearVu/ClearView).

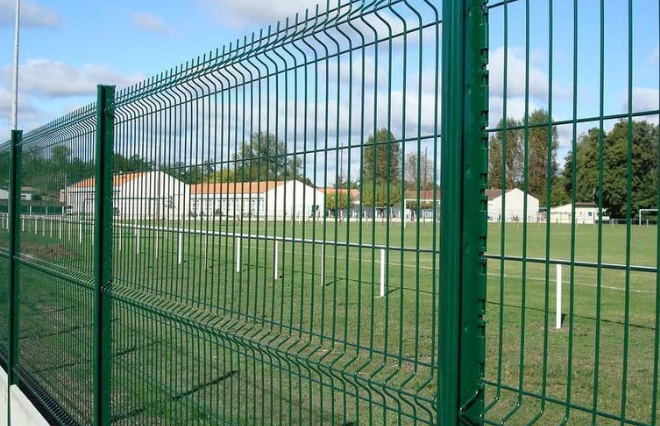

3D Wire Mesh Fencing (Nylofor / Panel Fence)

3D Wire Mesh panels—commonly referred to as Nylofor or V-bend panel fences—are high-strength welded wire panels engineered with horizontal “V” shaped structural folds. These 3D folds add three-dimensional rigidity across the vertical plane, preventing panel flex without adding heavy structural framing.

Key Technical Features

• V-Bend Reinforcement: Contains 2 to 4 pressed V-shaped structural bends depending on panel height (e.g., 2 bends for 1.2m, 3 for 1.8m, 4 for 2.4m).

• Mesh Aperture: Standard 50mmx200mm or 50mmx100mm rectangular openings.

• Wire Thickness: Heavy-gauge 3-4mm galvanized steel wire.

• Finish & Protection: Hot-dip galvanized wire substrate covered with electrostatically applied PVC or Polyester Powder Coating (PPC) (common colors: RAL 6005 Green, RAL 7016 Anthracite Grey, RAL 9005 Black).

• Post Systems: Mounted to 60x60mm square RHS posts, Peach-type posts (clip-on without bolts), or Bekafix H-posts using anti-tamper spider clamps or security brackets.

Ideal Applications

• Residential gated communities & private compounds.
• Commercial office parks, industrial godowns, and warehouses.
• Schools, playgrounds, and public parks.
• Solar farms, telecom towers, and utility substations.

Anti-Climb 358 Security Fencing (ClearVu / ClearView)

Anti-Climb 358 Mesh represents the gold standard in high-security perimeter defense. The name 358 derives from its precise imperial measurements: 3 inches horizontal aperture (76.2mm, 0.5 inches vertical aperture (12.7mm, and 8-gauge wire thickness (approx. 4.0mm).

Key Technical Features

• Anti-Climb Design: The narrow 12.7mm vertical gap makes it physically impossible to insert fingers, toes, or boots to gain a climbing foothold.

• Anti-Cut Resistance: The tight spacing prevents conventional bolt cutters or shears from gaining sufficient blade clearance to cut the wires.

• Unobstructed CCTV Surveillance: Despite its narrow mesh, the wire orientation provides direct line-of-sight for security cameras and guards, eliminating blind spots.

• High-Tensile Resistance: Heavy 3.0mm to 4.0mm vertical and horizontal wires resistance to impact, vehicle penetration, or mechanical tampering.

• Integrated Toppings: Easily accepts top-mounted electric fence brackets (razor wire or live wire extensions) and sensor wires.

Ideal Applications

• High-risk infrastructure: Airports, power plants, military bases, prisons, and banks.

• Data centers, logistics hubs, and high-value warehouses.

• Diplomatic embassies and government complexes.

• Premium commercial developments seeking high security without a prison-like appearance.

3. Head-to-Head Comparison

Typical Market Cost Overview (Kenya / East Africa Context)

Note: Prices vary depending on wire gauge, post thickness, coating quality (Galvanized vs. Powder Coated), and site conditions.

• 3D Wire Mesh Panel Fence (Supply & Install):

  • Estimated Price: KES 3,500 – KES 6,500 per linear meter (all-inclusive with posts & footings).

• 358 Anti-Climb / ClearVu Fence (Supply & Install):

  • Standard Security 50x75mm: KES 6,000 – KES 8,000 per meter.

  • Medium Security: KES 8,500 – KES 10,000 per meter.

  • High-Security 358 (12.7×76.2mm): KES 11,000 – KES 13,000 per meter.

• Electric Fence Topping Add-On:

  • Estimated Price: KES 1,050 – KES 1,250 per linear meter extra.

Frequently Asked Questions

Which fence is better for a commercial property or warehouse?

If budget efficiency and visual boundary definition are primary, 3D Mesh (Nylofor) provides strong, aesthetic perimeter protection at a lower cost per meter. If the property holds high-value inventory or requires zero intrusion risk, 358 Anti-Climb Fencing is recommended due to its anti-cut and climb-proof profile.

Can electric fencing be installed on top of 3D or 358 panels?

Yes. Both systems feature posts that can be extended with custom brackets (angled Y-posts or straight extensions) to mount 4-to-10 strand live wire electric toppings or razor coil attachments.

How do these systems perform in high-corrosion or coastal areas?

Dual-coated panels—featuring Hot-Dip Galvanizing (HDG) followed by a Polyester Powder Coating (PPC) layer—provide multi-decade resistance against rust, UV degradation, and salty coastal air.
